Gabion box

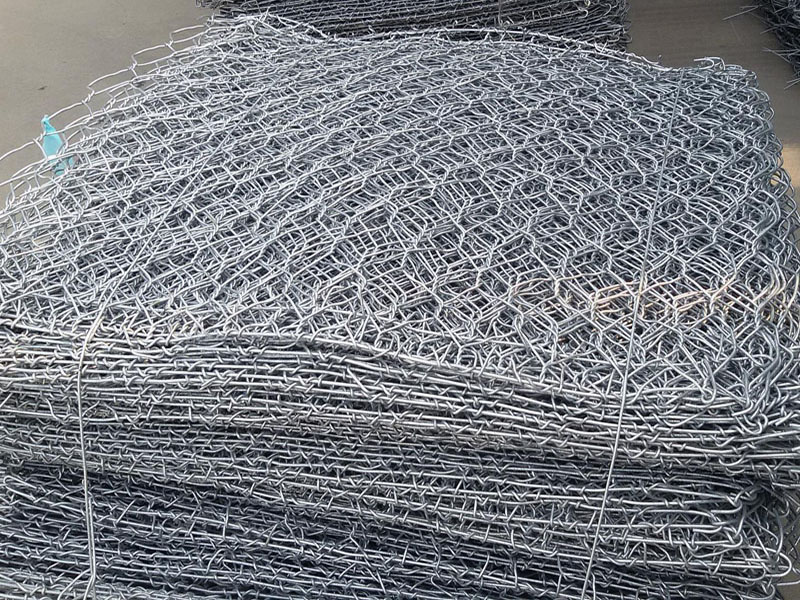

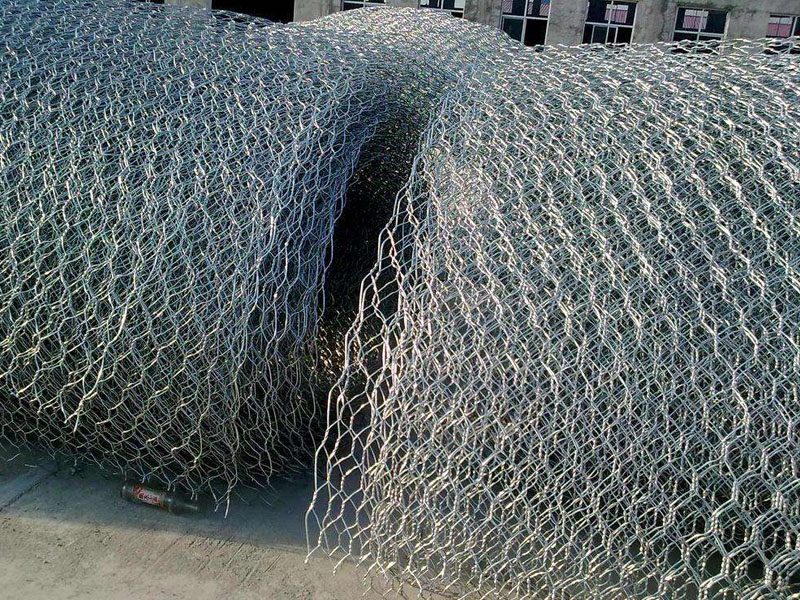

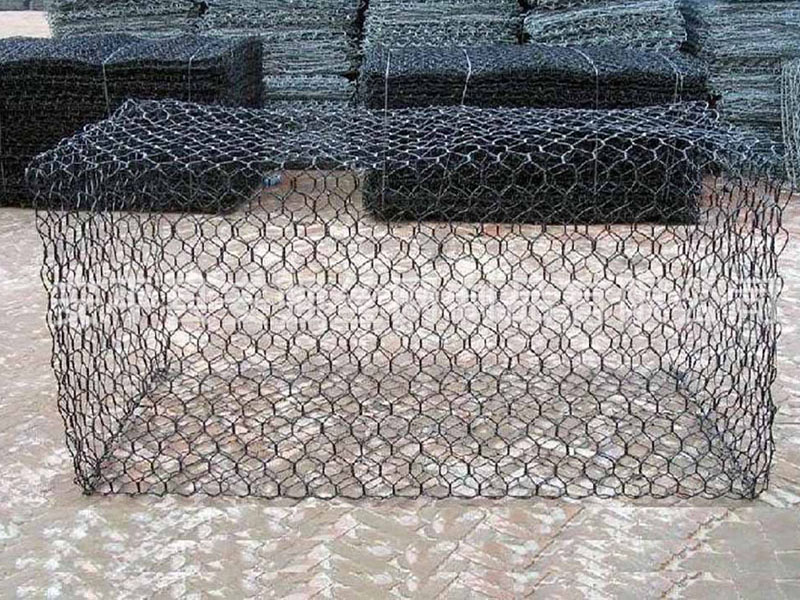

There are many names for gabion nets, such as gabion nets, lead wire gabions, Renault pads, etc. in fact, they are all gabion nets, but different names and cage sizes. Gabion nets are made of corrosion-resistant, wear-resistant, high-strength low-carbon galvanized steel wire or aluminum zinc alloy coated steel wire or aluminum zinc mixed rare earth alloy coated steel wire, coated with polymer or above homogeneous steel wire with high anti-corrosion treatment, The honeycomb mesh is mechanically woven into the most mechanical principle, and then cut and assembled into a cage shape.

The steel wire with the main wire of the gabion mesh is generally 2.0-4.0mm, and the diameter of the side line is larger than the diameter of the mesh wire. It is a steel wire woven or wound and fixed at the edge of the grid length direction; The end wire diameter is larger than the wire diameter. It is a steel wire woven or wound and fixed at the edge of the grid width direction. The end wire is generally the same as the edge wire. The mesh of gabion net is a hexagonal hole formed by mechanical stranding. The general mesh is 60*80, 80*100, 100*120 and 120*150mm.

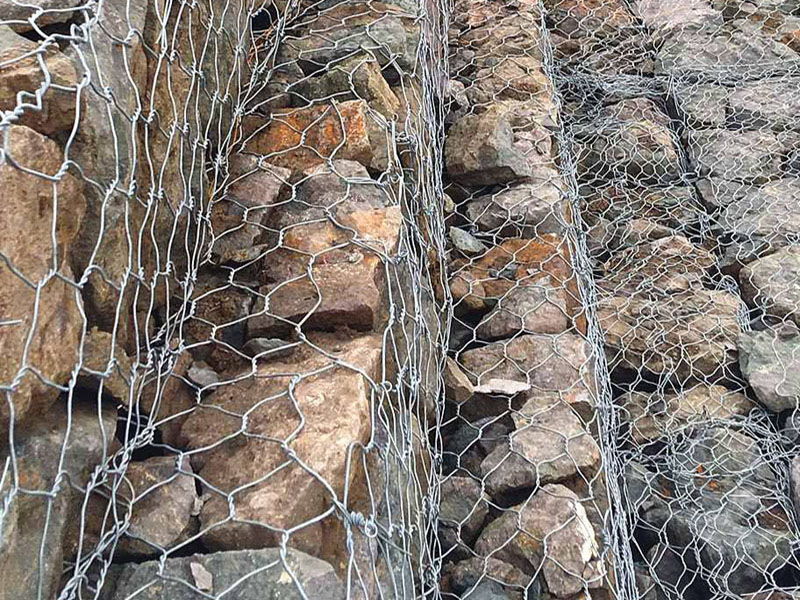

Gabion net can be used for slope support, foundation pit support, mountain rock surface hanging net shotcreting, slope vegetation (greening), railway and expressway isolation and protection blocking net. It can also be made into box cages and net mats for anti scouring protection of rivers, dams and seawalls, and net cages for reservoir and river closure. The most serious disaster of the river is that the river bank is damaged by water scouring, resulting in flooding, resulting in a large number of losses of life and property and a large amount of water and soil loss. Therefore, when dealing with the above problems, the application of this ecological grid structure becomes one of the best solutions, which can permanently protect the riverbed and banks.
