PVC Coated Gabions

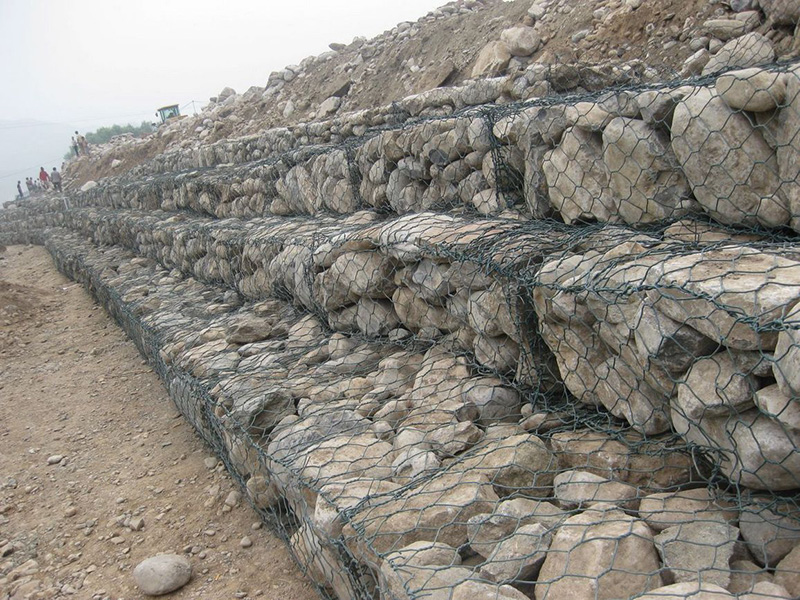

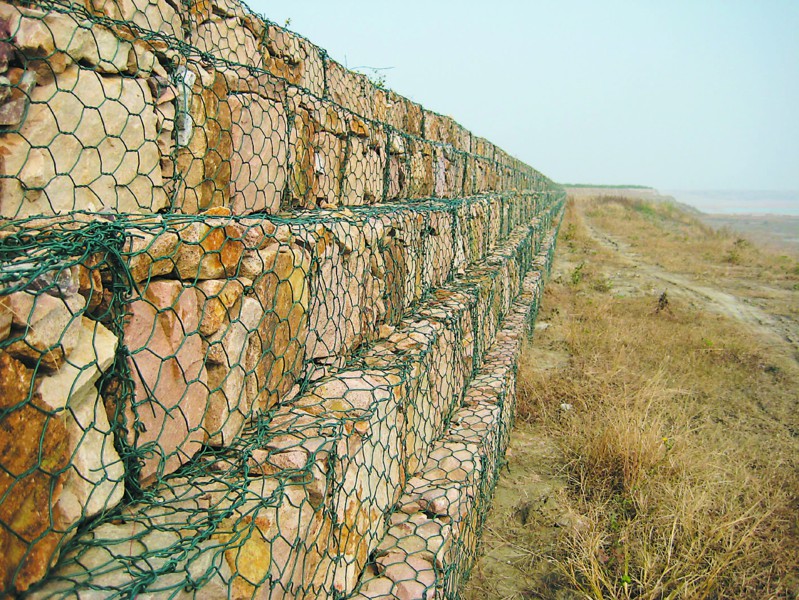

Galfan Gabions, or Galfan Coated Gabions are steel wire mesh gabions woven or welded, specially treated with Zn AL coating offering an excellent corrosion resistance. Galfan gabions have a better propety than zinc galvanized gabions and are widely used in soil retaining, slope protection, especially for offshore areas and long term uses.

Galfan coating has two types according to coating material ratio: one is 95% zinc and 5% aluminum or 90% zinc and 10% aluminum coating.

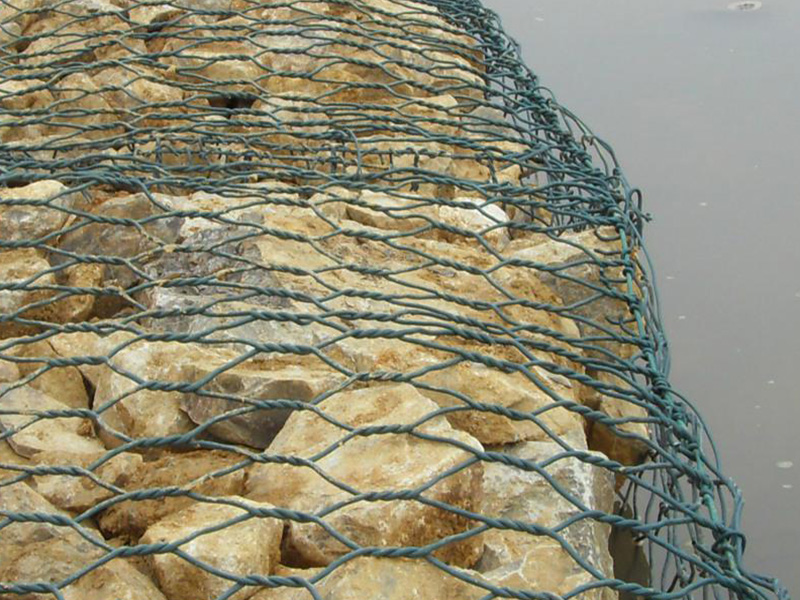

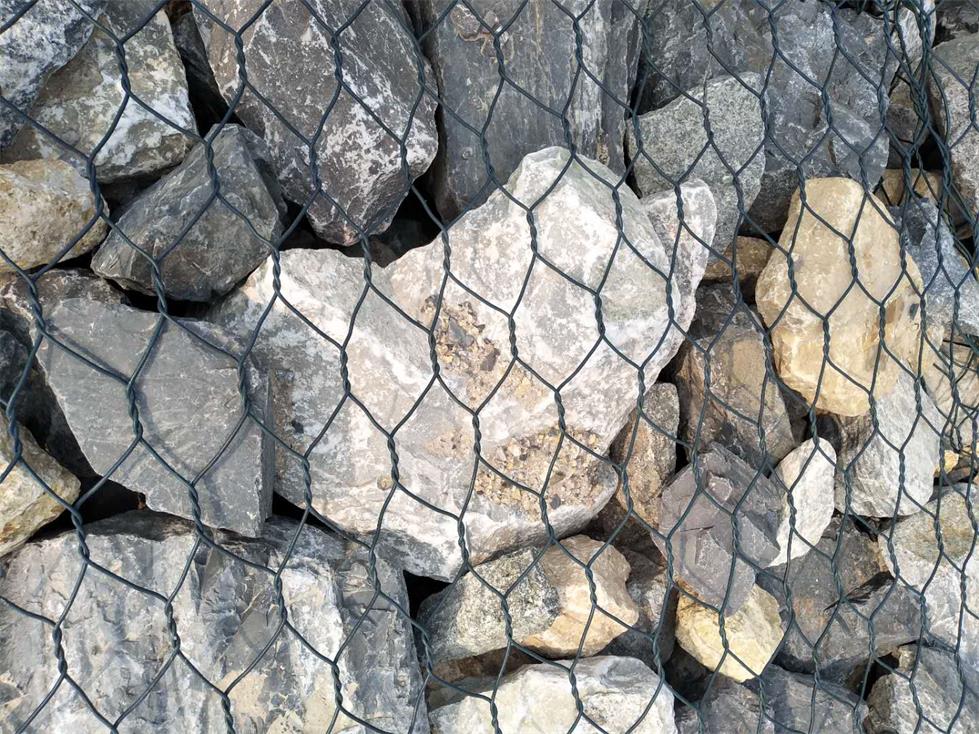

GalFan PVC Coated woven wire mesh gabions, mechanically edged/selvedged Woven, double twisted, hexgonal shaped steel wire Mesh, (Zn90% Al10%) PVC coated Popular mesh opening applied: 80x100mm.

One diaphragm every one meter (or at 3ft center) is positioned to divide the gabions into cells.

This structure makes the whole gabion flexible and easy to handle.

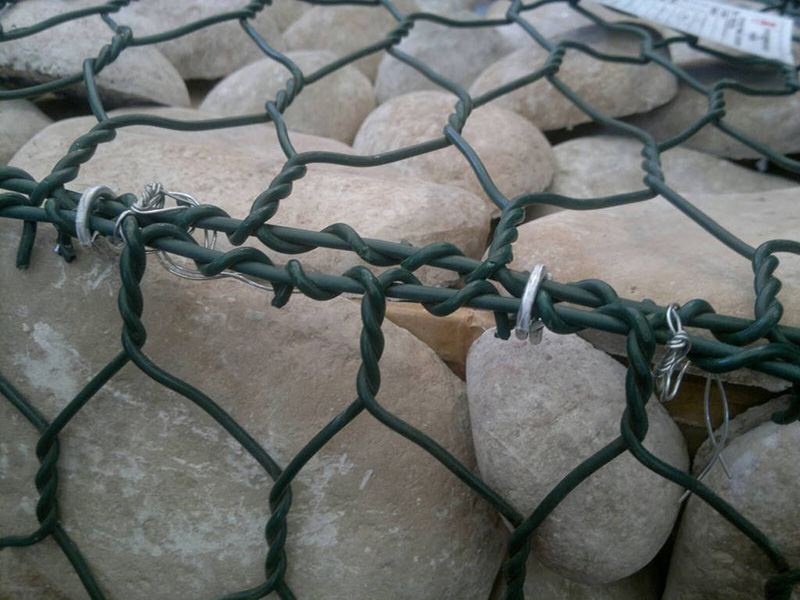

This type of woven or knitted mesh gabion has selvedge wire and lacing wire for reinforcement. All mesh panel edges are selvedged with a wire having a greater diameter than the woven or knitted wire.

Galfan (95% zinc, 5% aluminum or 90% zinc 10% alum) coating and its benefits:

Galfan gabion gets its name from its wire material: a kind of heavy Galfan soft tempered steel . Compared with traditional galvanized steel gabions with pure zinc coating, Galfan gabion features a heavy zinc – aluminum coating layer which enables an excellent corrosion resistance. The corrosion resistance of Galfan gabion doubles that of traditional pure zinc plating.

Wire Material Requirements:

The pvc coating for Galfan Gabions can be checked below (take an example of the 80x100mm galfan gabion), from the changes of the wire diameter before and after coating:

Knitted or woven wire: 3.7mm after PVC coating (2.7mm heavy Galfan before pvc coating)

Selvedge wire: 4.2mm after PVC coating (3.2mm heavy Galfan before pvc coating)

Lacing wire: 3.2mm after PVC coating (2.2mm heavy Galfan before pvc coating)

Zinc plating or galvanization required for the Galfan Gabions:

Galvanization on Kitted & Lacing wire: Heavy GALFAN (ZnAL) min 245gr/m2

Galvanization on Selvedge wire: Heavy GALFAN (ZnAL) min 255gr/m2
