Reno Mattress

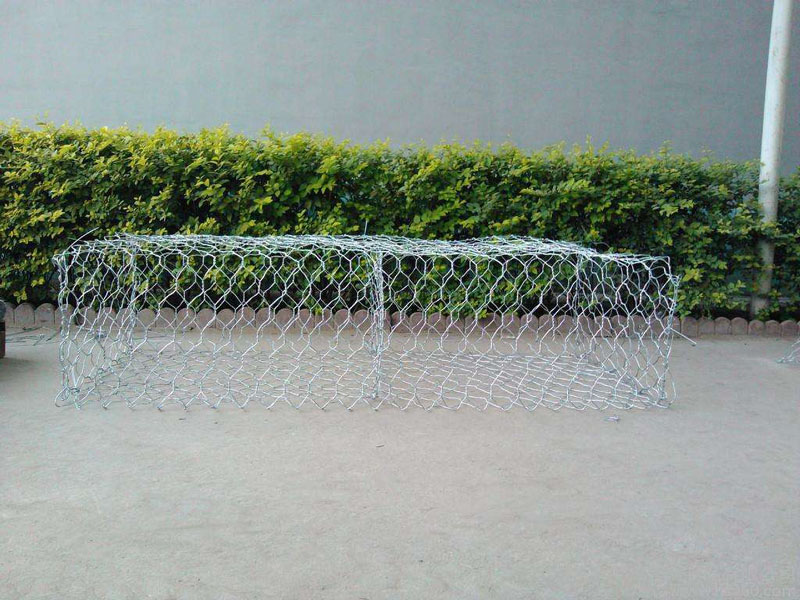

Reno mattress is also called gabion mattress. Gabion mattress refers to a cushion shaped engineering component composed of machine-made double twisted hexagonal metal mesh whose thickness is far less than the length and width. The Reynolds pad is connected into a whole after being filled with block stone and other filling materials. It has become an anti scour structure mainly used for water conservancy embankment, bank slope, Hyman, etc., and has the advantages of flexibility and adaptability to the foundation.

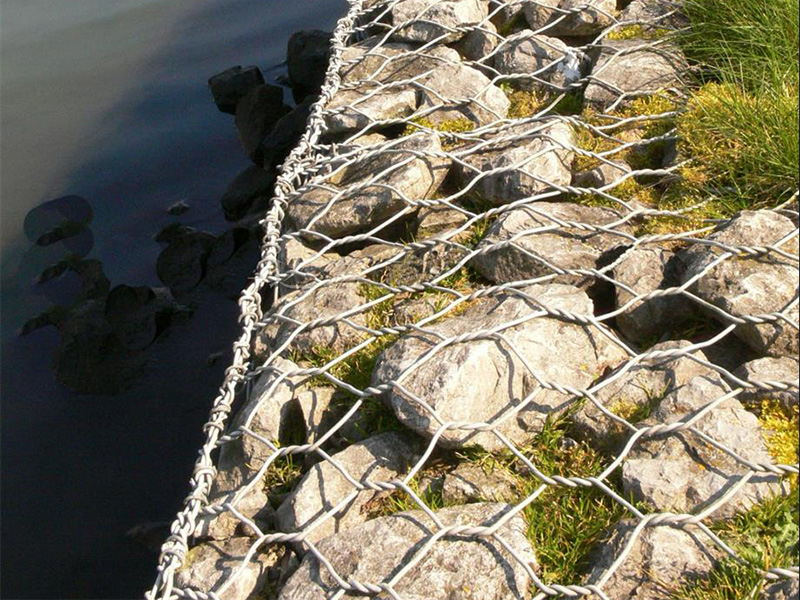

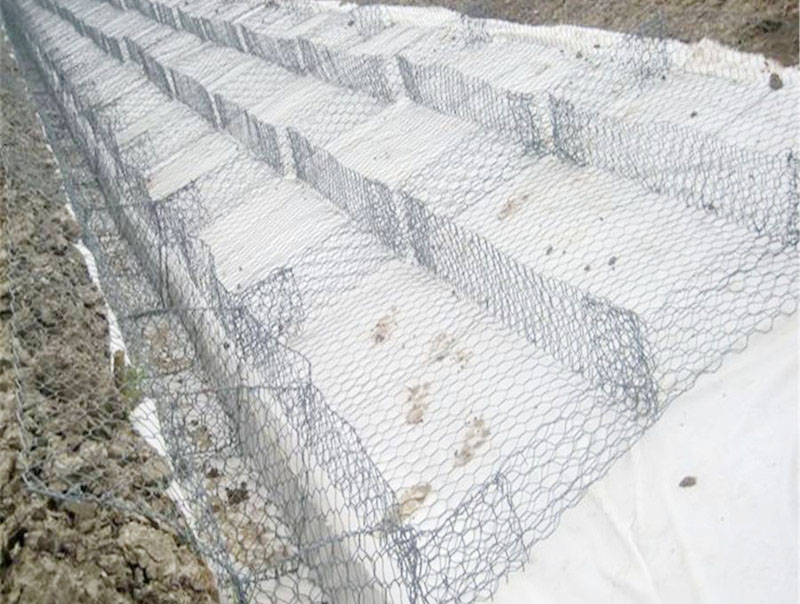

Renault pad is a net box structure with a thickness of 0.17-0.3m, which is used to fill stones on site. It is mainly used as slope protection structure for river channel, bank slope and subgrade slope. It can not only prevent the bank from being damaged by water flow and wind waves, but also realize the natural convection exchange function between the water body and the soil under the slope, so as to achieve ecological balance. Planting green on the slope can increase the landscape and greening effect.

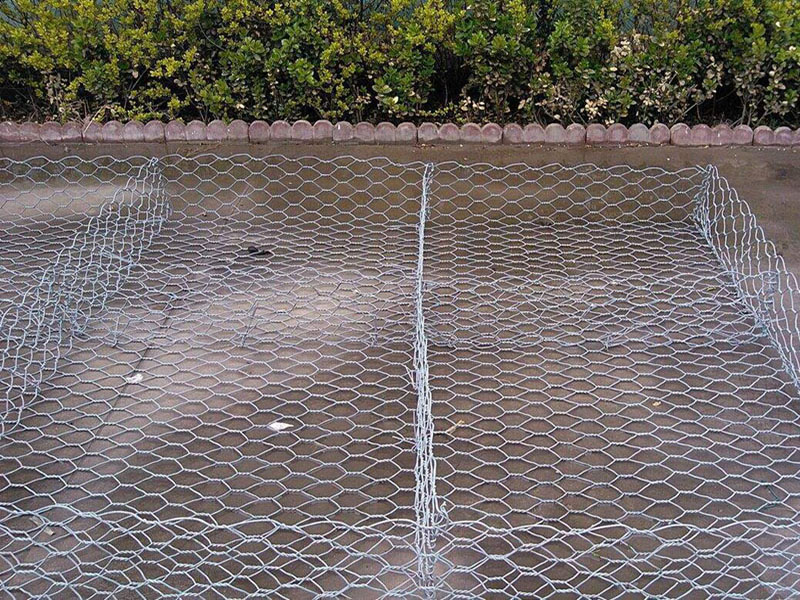

The difference between Reno mat and Gabion net cage and Gabion net cage is that the height of mat is low and the structure is flat and large; The diameter of coated steel wire is smaller than that of gabion. Generally, there are two types: Double clapboard (steel wire diameter 2.0mm) and single clapboard (2.2mm). The commonly used double clapboard Reynolds pad has the advantages of convenient construction, slope protection can effectively prevent rock collapse, and increase the anti scouring capacity of the structure.

Renault pad features

1. improve the stability of riverbed slope

2. protect riverbed from scouring
3 Provide the predetermined value of bank roughness coefficient (m)

4. greening and ecological protection of slope and bank protection

5. convenient construction
